Above: Originally created via Photoshop tricks, this nose-to-nose comparison between the GM EV1 (right) and the digitally massaged Honda Insight (left) was to show what Silver Streak would look like if fitted with the EV1's 'Circuit Board' looking wheels.
Below: What started as just a concept back in 2011 is now a reality.
Below: The 318.2V, 71.6 kWh battery pack is comprised of three modules - (1) 81.4V, 225ah (3P22S) two-piece module up front, (2) 118.4V, 225ah (3P32S) module mid-car in the former gas tank area, and (3) 118.4V, 225ah (3P32S) module under the hatch floor where the hybrid/IMA equipment was.

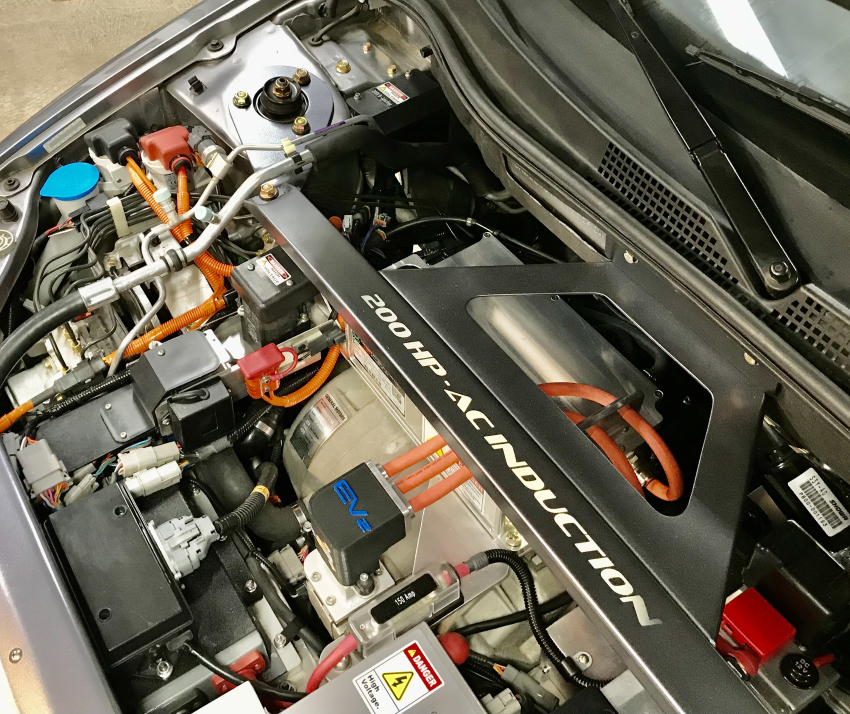

The EV1 motor is pumped up to 150 kW (100%-70% DOD) via a Rinehart PM100DXR race spec inverter.

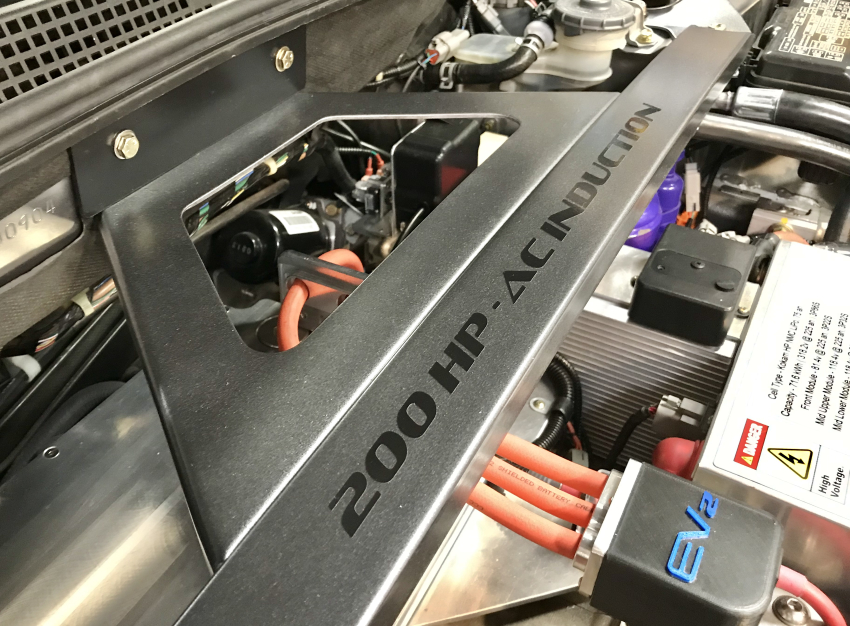

Sharp new strut tower brace advertising the capability of the motor.
